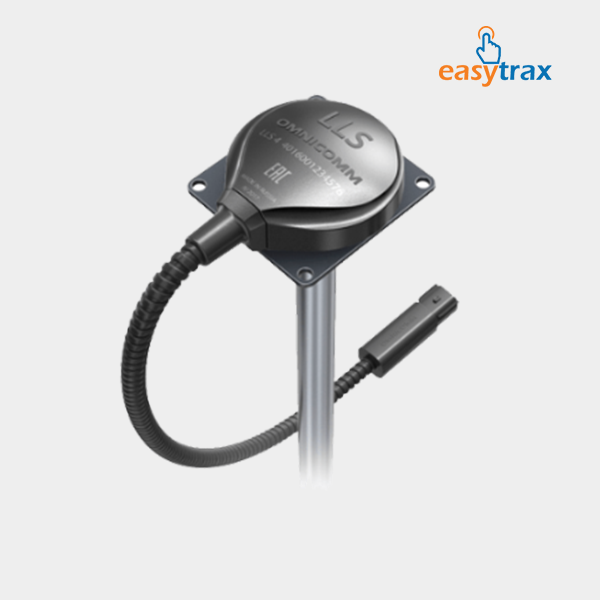

The new Omnicomm LLS 4 is extremely tough, accurate and reliable with increased all-round protection, including against electrostatic, electromagnetic and conducted interference.
The sensor head is designed to improve shock resistance while its compact size facilitates installation even in units very close to the fuel tank. The new enhanced cable connection slot with over-moulding is ultra-resistant to humidity, providing protection even when subjected to high-pressure washes.
The LLS 4 has an improved ingress protection rating of IP-69K.
| Error in measurement, % | ± 1,0 |
| Output | RS-232, RS-485 |
| Power supply voltage, V | 7…80 |
| Ingress protection rating | IP69k |
| Dielectric strength of galvanic isolation, min, V | 1500 |
| Operating temperature, C | – 60 … +85 |
| Temperature measuring range, C | – 40 … + 80 |
| Resolution, bit | 12 |
| Output range of readings corresponding to the maximum value of measured level |
1…4095 |
| Output range of readings corresponding to the minimum value of measured level |
0…1023 |
SKU: ETSFMS003
